12th 13th Embedded Industrial Motherboards H-ADLP02
Based on Intel 12/13th generation Core platform
2 SO-DIMM DDR4 expansion memory slot, support up to 64GB
1 M.2 KEY-E 2230 interface, expand Wi-Fi + BT module
1 M.2 KEY-M interface, expand NVME/SATA adaptive storage module
1 10/100/1000M Ethernet
Maximum expansion of 10 USB, 4 COM
DC 12/24V power supply
Послати повідомлення

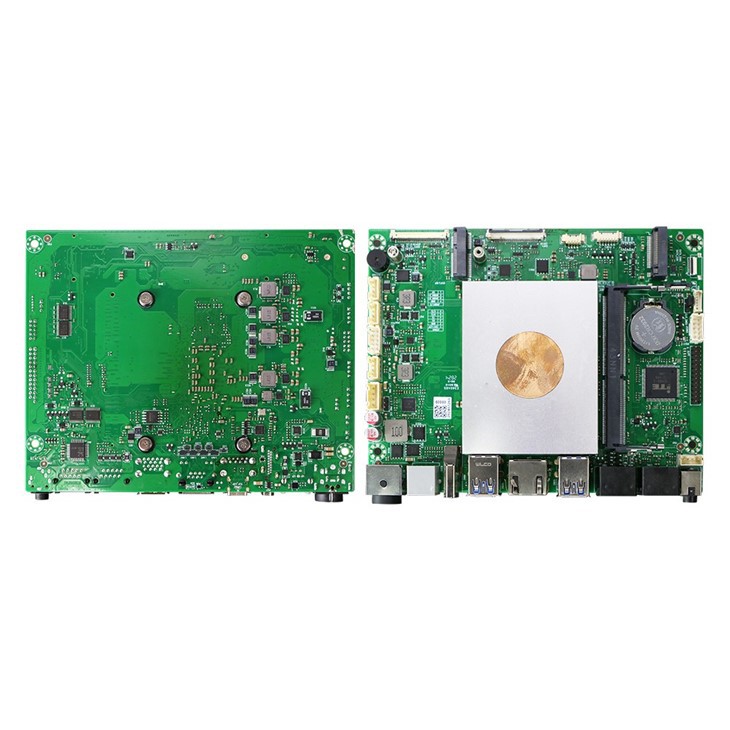

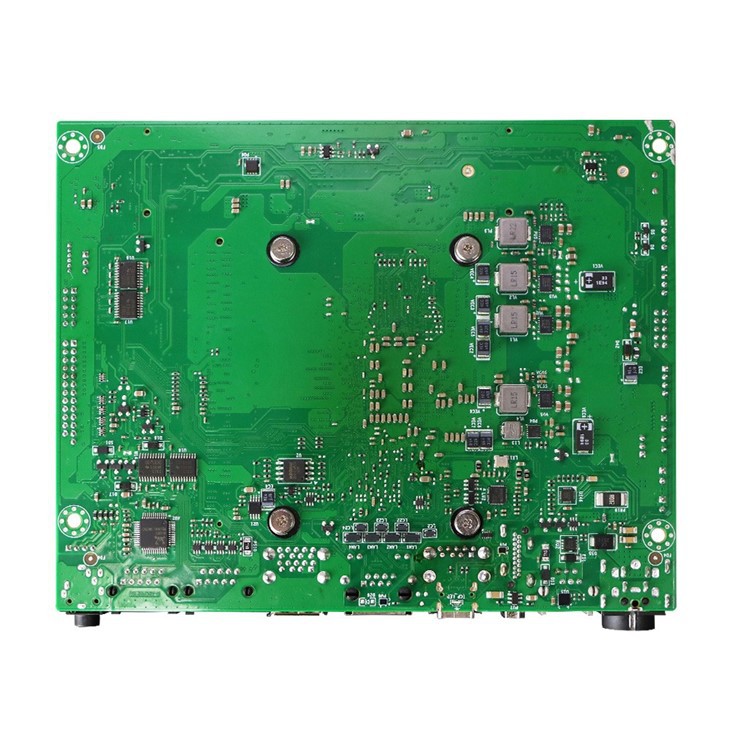

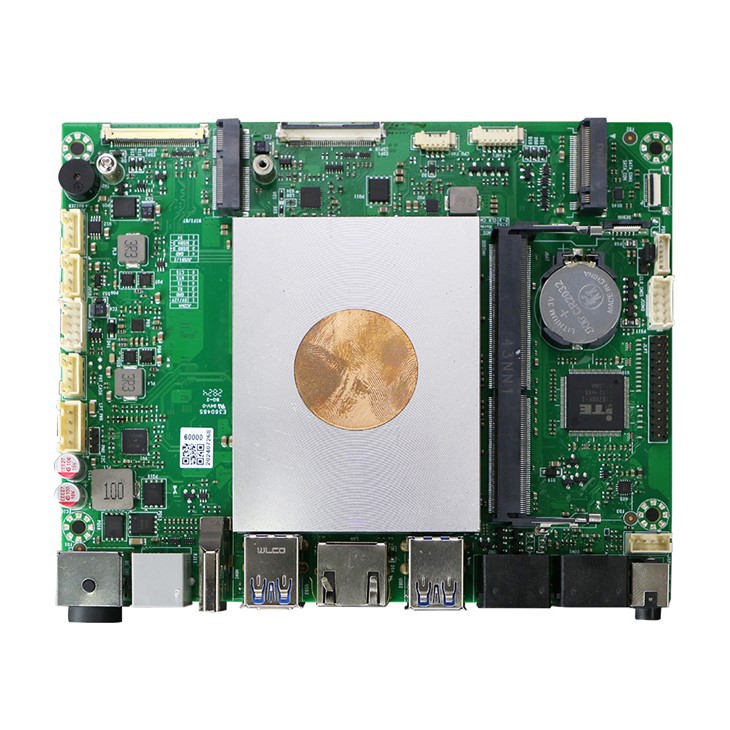

Product Details of12th 13th Embedded Industrial Motherboards H-ADLP02
The H-ADLP02 Embedded Industrial Motherboards features the Intel 12/13th generation Core-U/P series. It supports up to 32GB of DDR4 3200MT/s SO-DIMM memory and includes multiple connectivity options such as HDMI+EDP+EDP for a Triple display, 4 x USB3.0 or 3x USB3.0+1x type-C, 1 HSIO, 4 RS 232 COM ports, 1 RJ45 LAN, and 2 M.2 slots. It also supports Wake on LAN, no disk guidance, and auto power on. This motherboard is suitable for various applications including retail, self-service kiosks, all-in-one machines, and industrial control systems.
H-ADLP02
| Intel® 12th/13th Alder Lake/Raptor Lake Processor (supports U/P series) | |
| HD+EDP+EDP support triple display HDI max resolution 4096x2160@30Hz eDP max resolution 1920*1080@60Hz |
|
| 1*DDR4 Ram slot,Max 32 GB | |
| 1xSATA3.0, 1xM.2 2242/2280 interface supports SSD with SATA/NVME | |
| Rear IO supports Mic-in/Line-out two-in-one, supports dual-channel 2W/8Ω, 3W/4Ω power and amplifier output | |
| 1xRJ45 Gigabit Ethernet Port RTL8111H | |

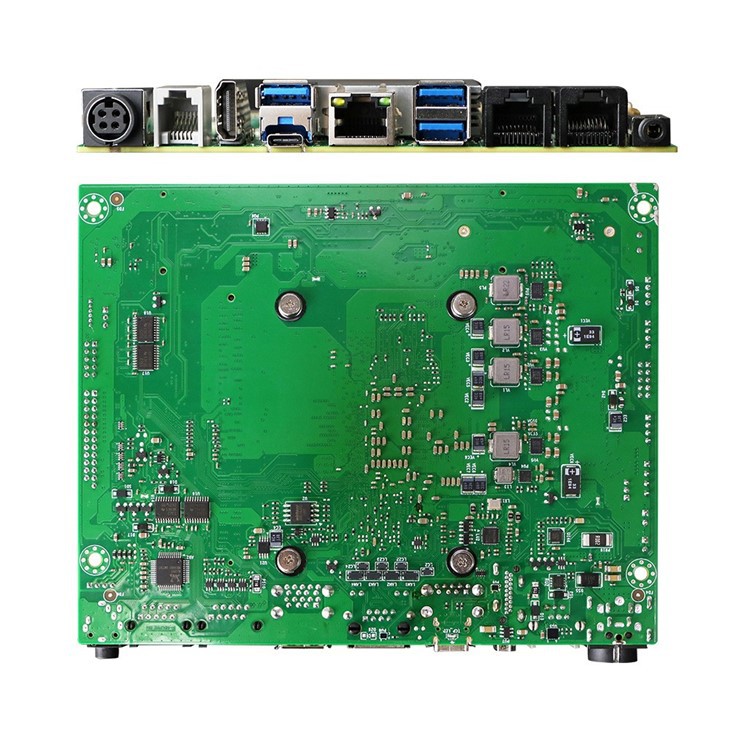

| Rear IO: 4 x USB3.0 (double-layer USB 3.0 Type-A) or 3x USB3.0+1x type-C Onboard: 1x 2*5PIN Wafer, 2x 1*1PIN Wafer, EDP1, EDP2 interface built-in 3 USB2.0 interfaces, a total of 11 USB can be expanded |
|
| 1 LPT 2*13PIN Header parallel port | |
|
4 RS232 serial ports |
|
| 1 M.2 KEY-M (SATA/PCIE X2 adaptive) 1 M.2 KEY-E (PCIE X1+USB2.0 signal) |
|
| 1x F_PANEL,1x SATA_CONN(FPC),1x CPU_FAN,1x PRT_CASH | |
| Storage temperature and humidity: -20~75℃ 10%~90%, non-condensing Working temperature and humidity: 0~60℃ 10%~90%, non-condensing |
|
| Windows 10/11,Linux | |
| DC-IN 12V | |
| 151mm*120mm(L*W) |
| M.2 | Type-C | ||||||||||
| 3.0 | 2.0 | ||||||||||
| Hn-1215D14-2E | 1215U |
/
|
2
|
1 | / | 1 | 4 | 7 | 4 | 2 | / |
| Hn-1235D14-2E | 1235u |
/
|
2
|
1 | / | 1 | 4 | 7 | 4 | 2 | / |
| Hn-1315D14-2E | 1315u |
/
|
2
|
1 | / | 1 | 4 | 7 | 4 | 2 | / |
| Hn-1215D14-T2E | 1215U | / |
2
|
1 | / | 1 | 3 | 7 | 4 | 2 | 1 |
| Hn-1235D14-T2E | 1235u |
/
|
2
|
1 | / | 1 | 3 | 7 | 4 | 2 | 1 |
| Hn-1315D14-T2E | 1315u | / |
2
|
1 | / | 1 | 3 | 7 | 4 | 2 | 1 |
